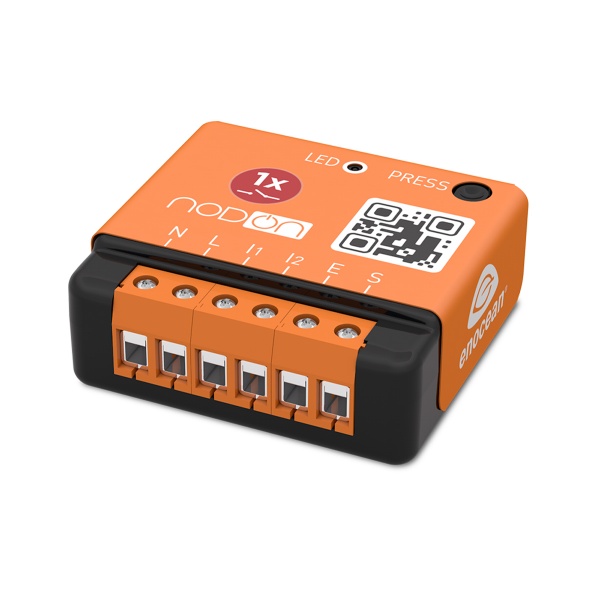

Retrotouch Enocean Multifunction Relay Switch

Control heaters, boilers, garage doors and more with the EnOcean multifunction NodOn relays. Compatible with the EnOcean worldwide smart home / smart building protocol, mount the relays in your ceiling, walls or behind your switches and sockets.

Technical Specs:

• Power supply: 230V AC ~ 50Hz
• Switching capabilities: 230V AC – 10A // 30V DC – 10A
• Consumption: <1W
• Maximum output power: 2.3kW (Resistive load)
• Radio frequency range: 868,0 to 868,6 Mhz
• RF power max: +3dBm
• Range: Up to 30m indoors
• Operational temperature: 0°C to 40°
• Protection rating: IP 2X
• Pairing: up to 22 controllers
• EEP (EnOcean Profile): D2-01-0F
• Dimensions : 40 mm (l) x 44 mm (L) x 16.9 mm (h)

Certifications and Standards:

• EN60669-1:1999+A1:02+A2:08
• EN60669-2-1:2004+A1:09+A12:10
• EN300220-2 V3.1.1
• EN301489-01 V2.1.1
• EN301489-03 V2.1.1
• EN62479:2010
