Niglon 5 Way Crane Pendant Up/Down/Left/Right/E-stop (2 x 1 Speed) – CPSS-5
Niglon 5 Way Crane Pendant Up/Down/Left/Right/E-stop (2 x 1 Speed) – CPSS-5 - Image 2
Niglon 5 Way Crane Pendant Up/Down/Left/Right/E-stop (2 x 1 Speed) – CPSS-5 - Image 3

Niglon 5 Way Crane Pendant Up/Down/Left/Right/E-stop (2 x 1 Speed) – CPSS-5

    Original price was: £90.56.Current price is: £54.34.

    Niglon 5 Way Crane Pendant Up/Down/Left/Right/E-stop (2 x 1 Speed) – CPSS-5

    Part No          Description

    CPSS-5           5 Way Crane Pendant Up/Down/Left/Right/E-stop (2 x 1 Speed)

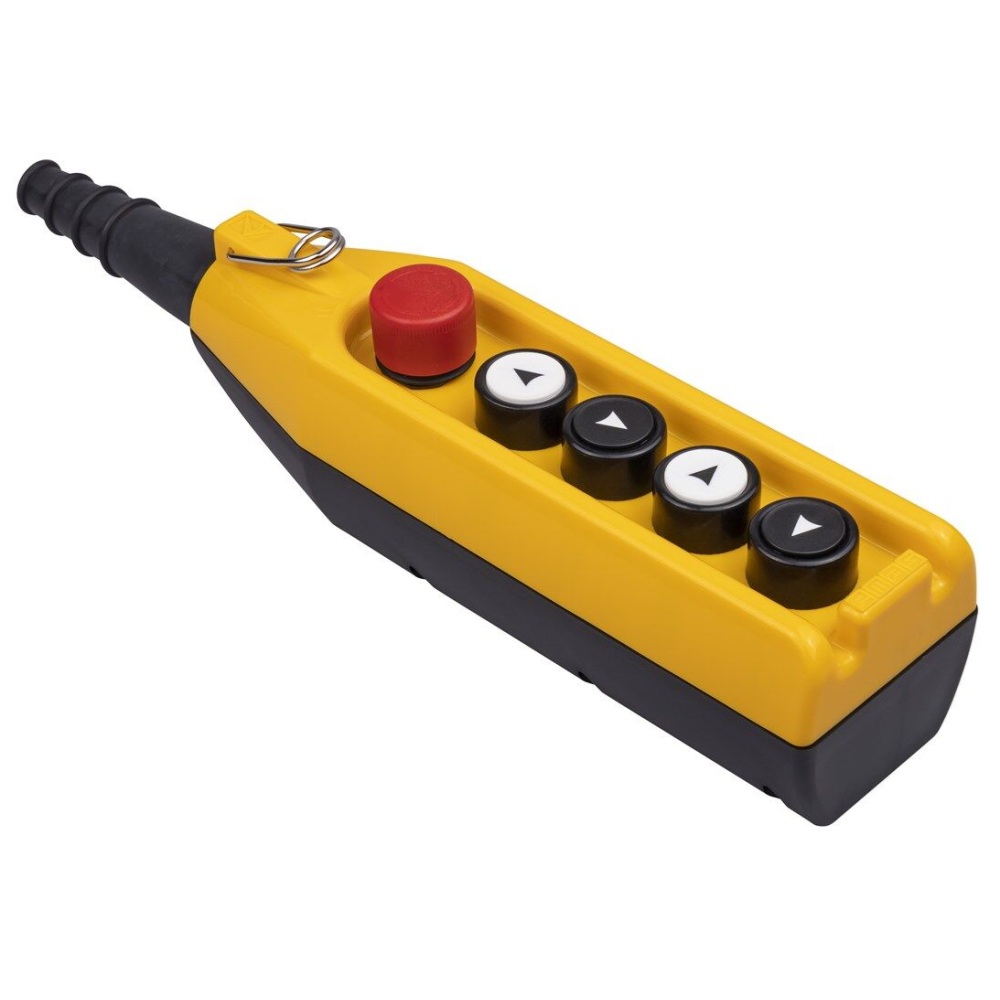

    5 button crane pendant pushbutton station made from reinforced ABS plastic for strength and rigidity. Control buttons are mechanically interlocked. Single speed contact operation. Internal channelling makes wiring easier. Strain relief glanding

    Specification

    Standards: BS EN 60947-5-1

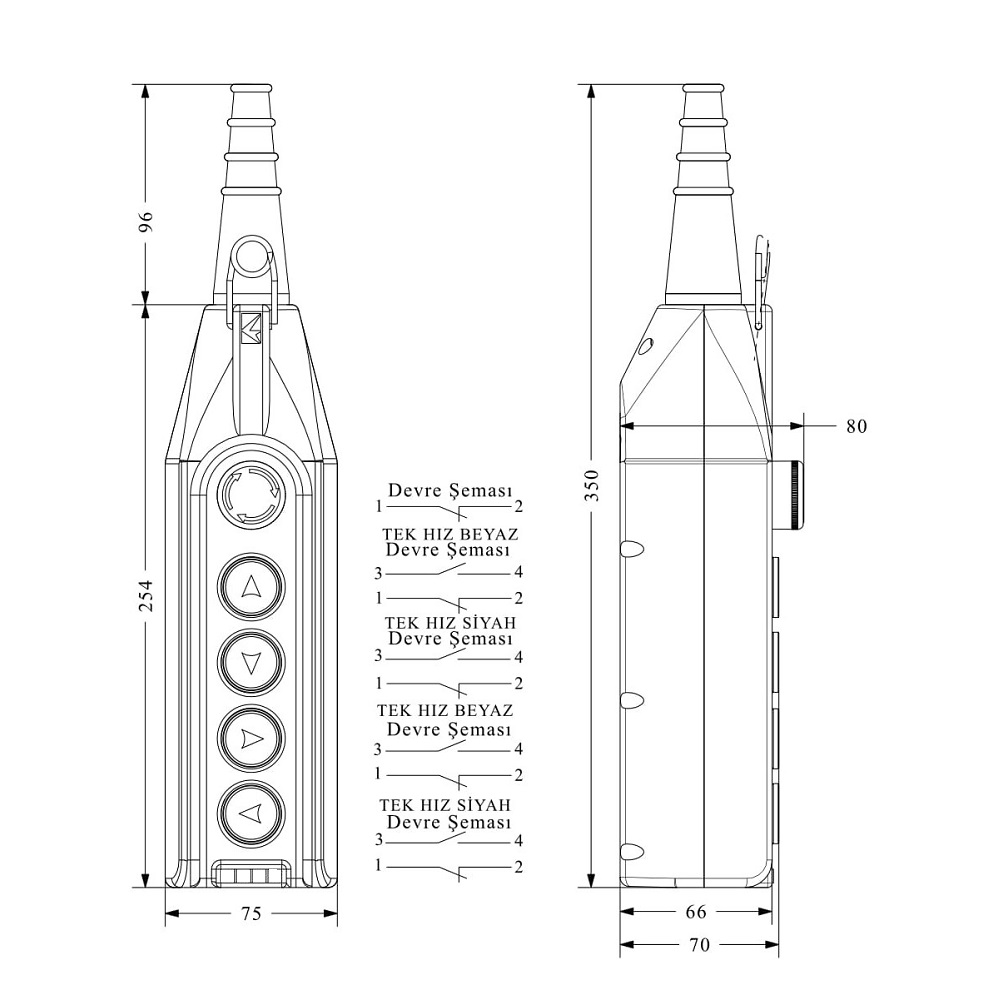

    Overall depth: 350mm
    Body depth: 254mm
    Maximum width: 75mm
    Maximum height: 80mm
    Degree of protection: IP65
    Contacts: 4A/230VAC
    Contact material: AgNi
    Mechanical life: >1M operations
    Mechanical operating freqency: 900 on/off per hour
    Electrical life: >100K operations
    Electrical operating freqency: 900 on/off per hour
    Insulation voltage Ui: 300V
    Impulse withstand voltage Uimp: 2500V
    Dielectric strength body-contact: 2500 VAC
    Dielectric strength contact-contact: 1500 VAC
    Operating temperature: -15°C to +80°C

    CPSS-5 Data Sheet

    Category:

      Niglon 5 Way Crane Pendant Up/Down/Left/Right/E-stop (2 x 1 Speed) – CPSS-5

      Part No          Description

      CPSS-5           5 Way Crane Pendant Up/Down/Left/Right/E-stop (2 x 1 Speed)

      5 button crane pendant pushbutton station made from reinforced ABS plastic for strength and rigidity. Control buttons are mechanically interlocked. Single speed contact operation. Internal channelling makes wiring easier. Strain relief glanding

      Specification

      Standards: BS EN 60947-5-1
      Overall depth: 350mm
      Body depth: 254mm
      Maximum width: 75mm
      Maximum height: 80mm
      Degree of protection: IP65
      Contacts: 4A/230VAC
      Contact material: AgNi
      Mechanical life: >1M operations
      Mechanical operating freqency: 900 on/off per hour
      Electrical life: >100K operations
      Electrical operating freqency: 900 on/off per hour
      Insulation voltage Ui: 300V
      Impulse withstand voltage Uimp: 2500V
      Dielectric strength body-contact: 2500 VAC
      Dielectric strength contact-contact: 1500 VAC
      Operating temperature: -15°C to +80°C

      CPSS-5 Data Sheet
