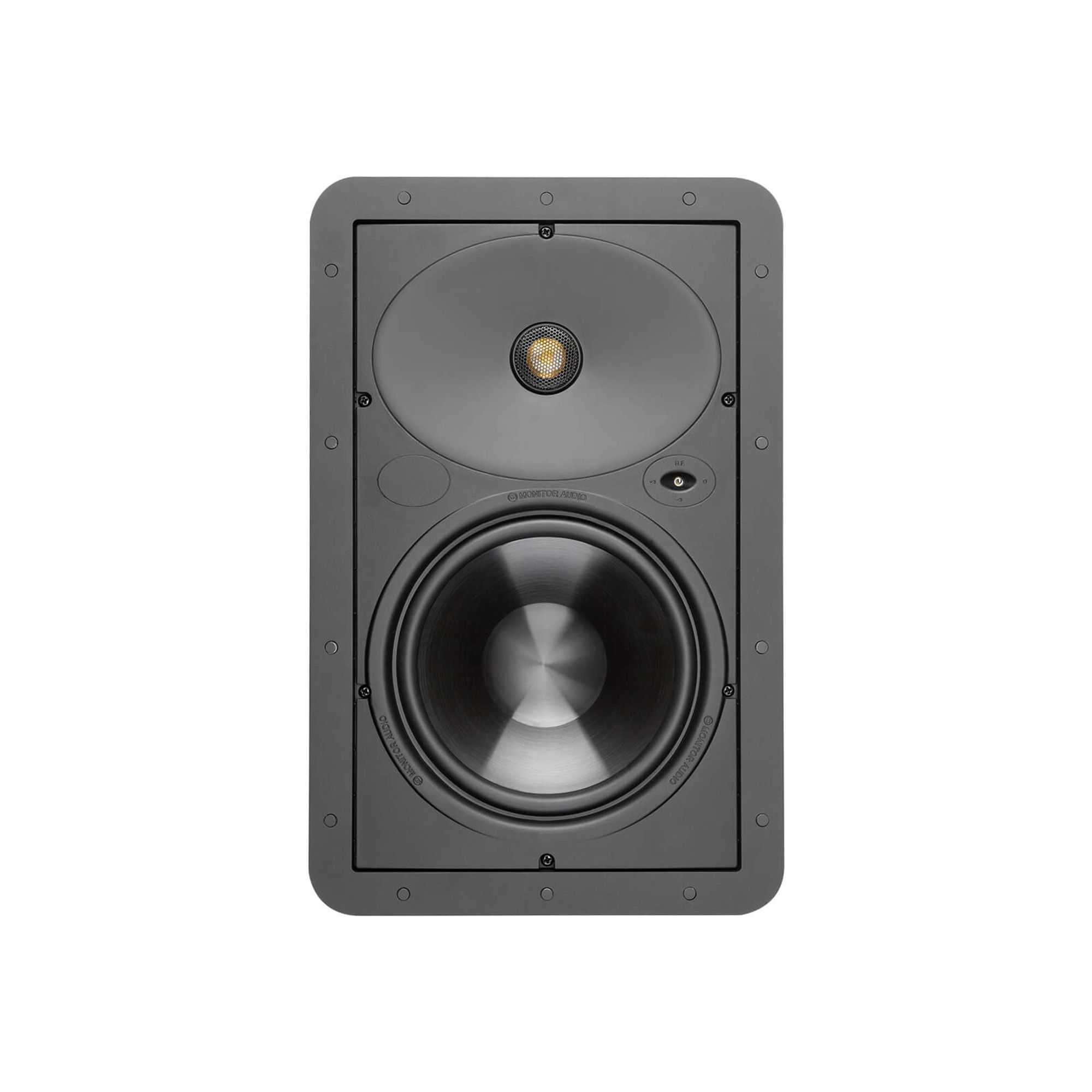

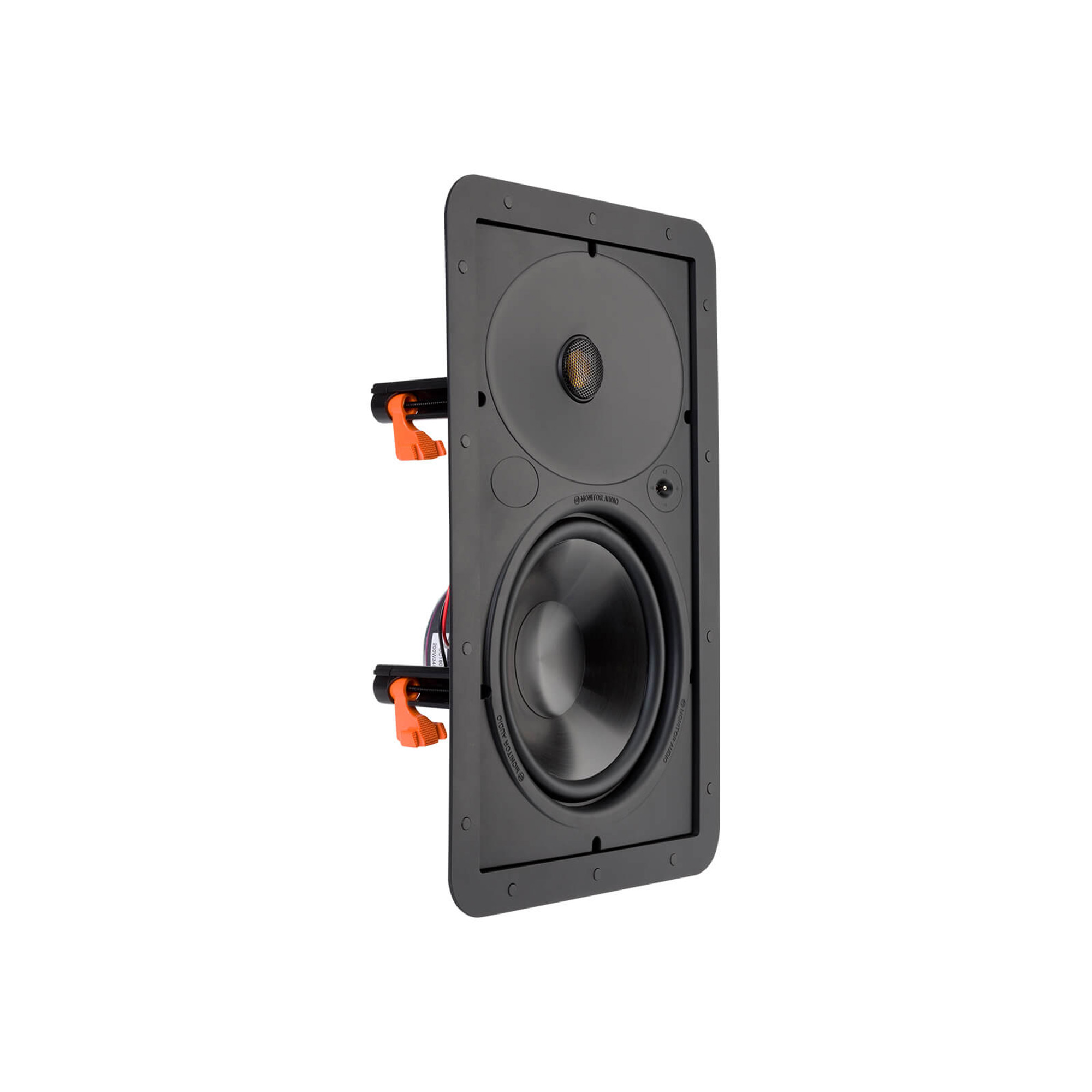

Monitor Audio – W180 – In-Wall Speaker

Incorporating an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

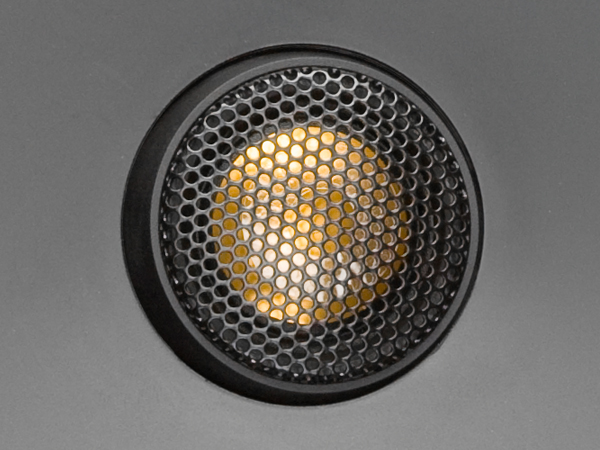

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

Technical Specs

• Frequency Response: 50 Hz – 25 kHz
• Nominal Impedance: 6 ohms
• Sensitivity (1W@1M): 90 dB
• Maximum SPL: 111.6 dBA
• Power Handling (RMS): 120 W
• Recommended Amplifier Requirements: 30 – 120 W
• Drive Unit Complement: 8″ MMP II cone bass driver & 1″ C-CAM Gold Dome tweeter
• Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)
• Overall Diameter (Including Grille): 441 x 288 mm (17^3/8 x 11^5/16“)
• Overall Depth (Including Grille): 104 mm (4^1/8“)
• Mounting Depth: 100 mm (3^15/16“)
• Cut-Out Hole Diameter: 387 x 234 mm (15^1/4” x 9^3/16“)

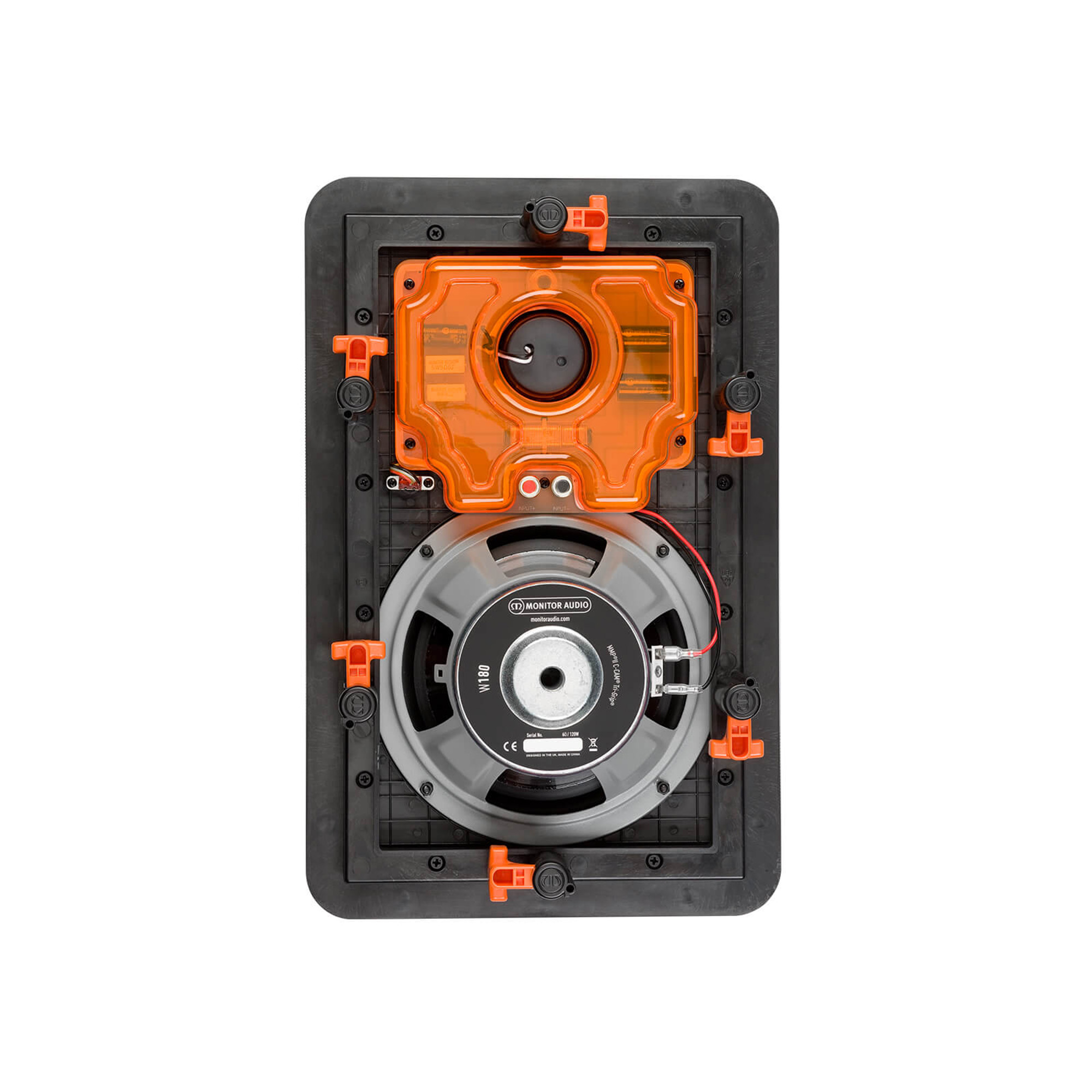

• Fixing Type: 6 position Tri-Grip dog fixings
