HDANYWHERE – XTND 4K (40) ARC

Name: HDANYWHERE – XTND 4K (40) ARC - Photography & Drones | Pro Gear for Enthusiasts
Price: 172.44 GBP
Availability: InStock

£172.44

XTND 4K (40m) ARC extends a 2160p 4K HDMI signal up to 40m, and 1080p up to 70m.

Supports:
HDR, ARC and HDCP 2.2
Two-way IR and bi-directional PoH
Sold as a complete kit inc. power supply (for TX) and IR gear.

Category: HDANYWHERE XTND HDMI Extenders

Description
Reviews (0)

XTND 4K (40) ARC

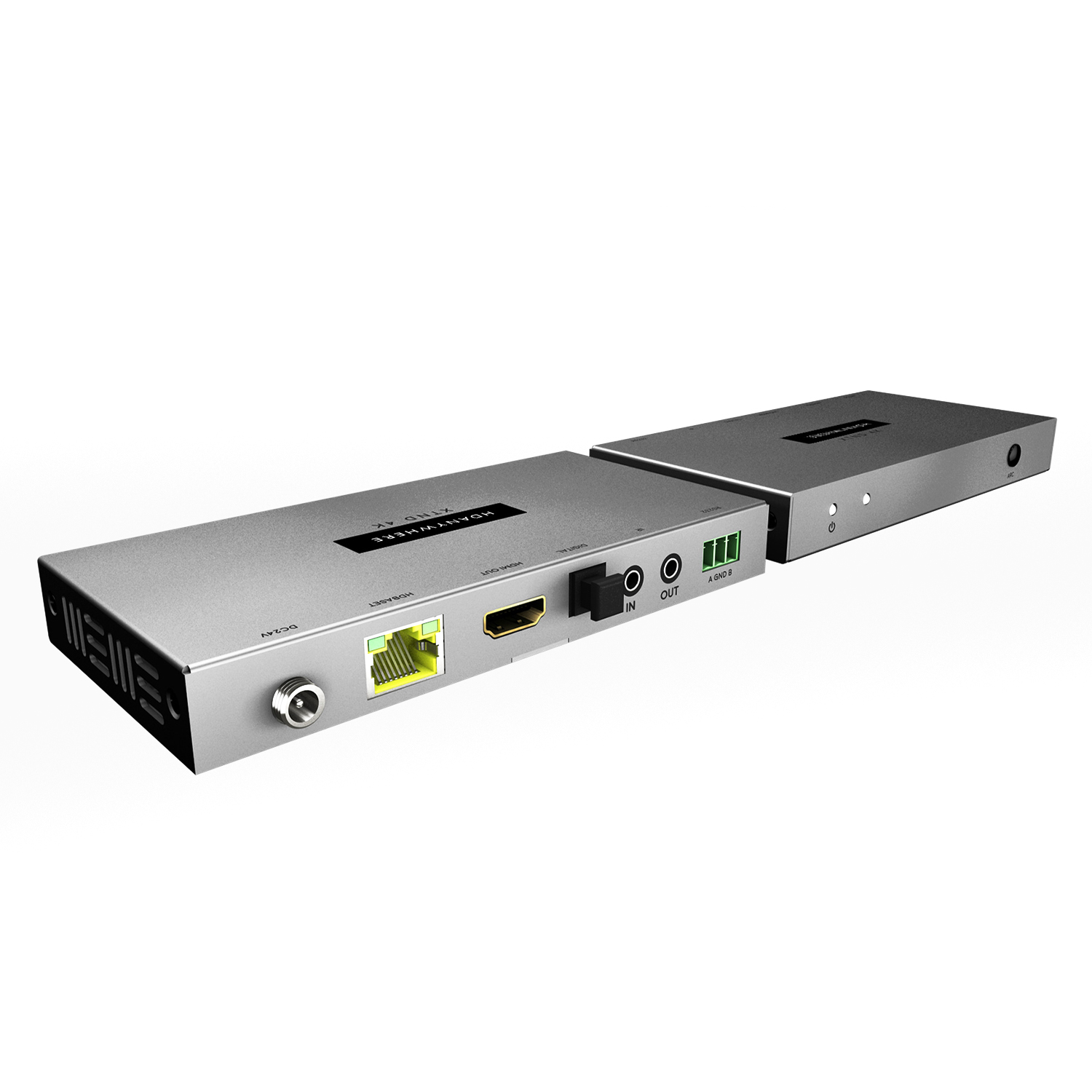

A long-range uncompressed HDMI/HDBaseT extender, set with a 40m* UHD 4K or 70m* 1080p transmission range over one twisted pair Cat cable.

*Distance can be variable depending on whether Audio Return Channel (ARC) mode is enabled or disabled. Please contact HDANYWHERE for further clarification.

Unboxing the new HDANYWHERE XTND 4K series of HDMI over Cat Extenders

Manual

Datasheet

Features

HDMI® 2.0 features supported up to 10.2Gbps

Supports HDCP 2.2

Ultra HD 4K 24/30Hz 4:2:2 (HDR10) or 60Hz 4:2:0 (HDR 8bit) + support for Dolby Vision and HLG.

Supports all current audio formats up to and including Dolby Atmos® and DTS:X®

RX>TX audio return via Optical or HDMI-ARC to Optical on TX
Two-way IR

Bi-directional RS232 control.

Bi-directional PoH – can be powered from either RX or TX

Sold as a complete install package, with all IR cabling and mounting kit included

UK / EU / AU / US multi-territory adapters included

What’s Included?

1x XTND4K40ARC Transmitter

1x XTND4K40ARC Receiver

2x IR RX

2x IR TX

1x 24V/1A DC PSU

4x Wall mounting brackets

Technical Specs

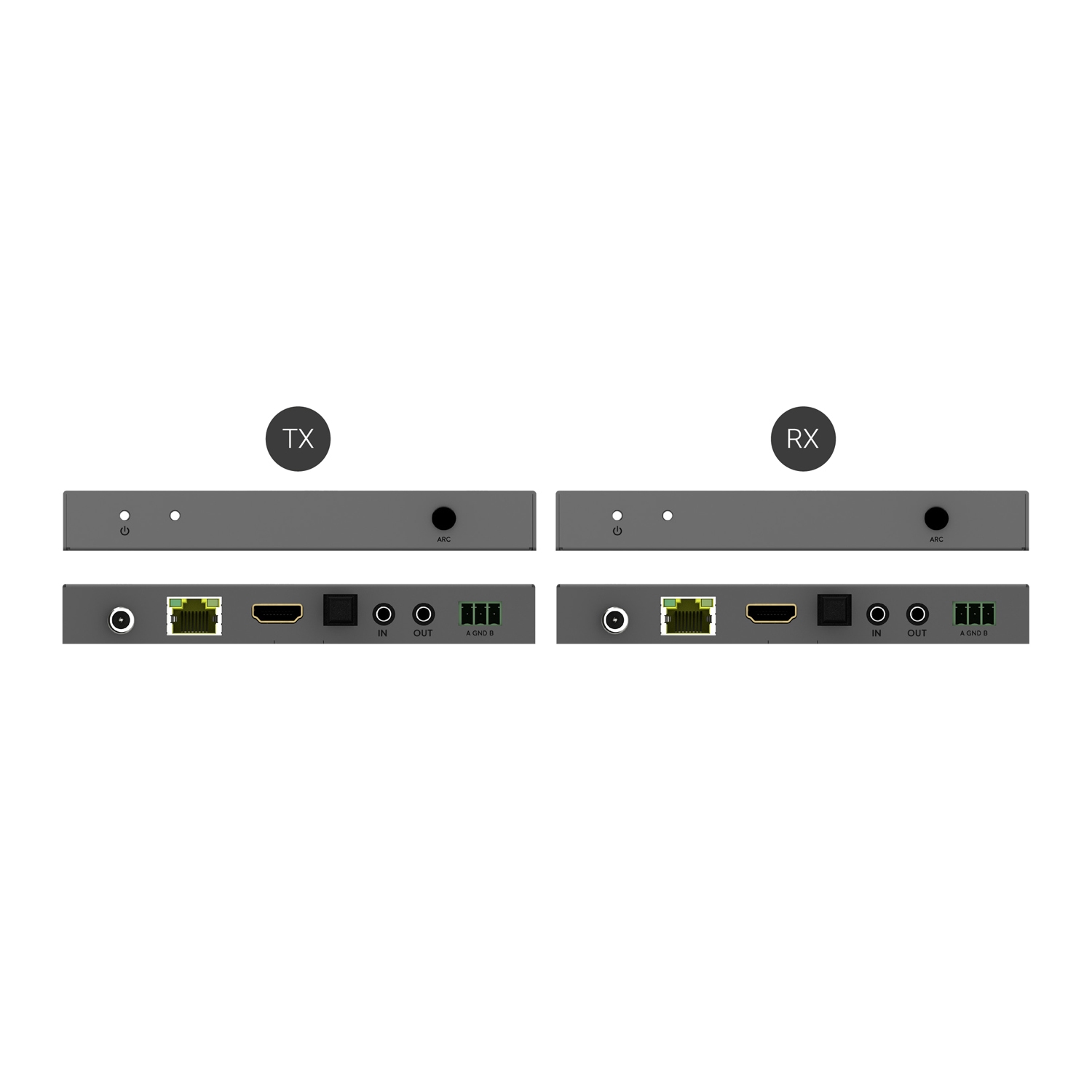

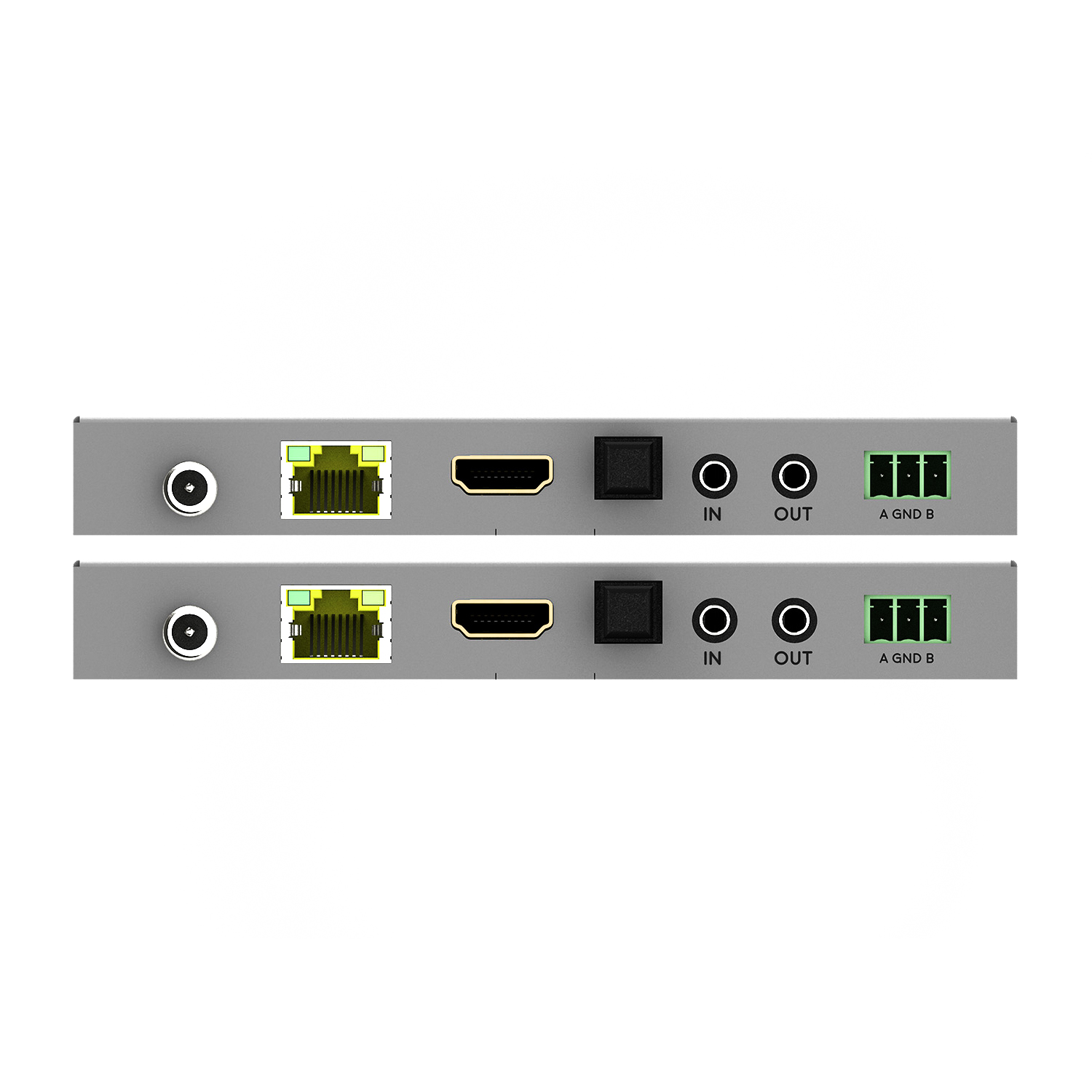

Inputs x outputs	TX: HDMI in / RJ45 HDBaseT out / Optical out / RS232 / 2x IR 3.5mm jack (in = to RX / out = from RX) RX: RJ45 HDBaseT in / HDMI out / Optical in / RS232 / 2x IR 3.5mm jack (in = to TX / out = from TX)
Transmission tech.	HDBaseT Class B
Video bandwidth	340MHz clock / 10.2Gbps data
ESD protection	± 8kV (air-gap discharge) ± 4kV (contact discharge)
Control	Bi-directional IR and RS232 + HDMI-CEC pass through.
Power	24V/1A DC screw type connector (US/EU standards, CE/FCC/UL certified)
Power consumption	9.5W (max)
General
Form factor	Lightweight slender aluminium enclosure
Device / Package weight	TX / RX: 125g each Package: 1100g
Dimensions (W x D x H)	TX / RX: 140 / 65 / 17 mm
Operating temperature	0°C ~ 40°C
Storage temperature	-20°C ~ 60°C
Relative humidity	20~90% RH (non-condensing)
Guarantee	2 year guarantee
