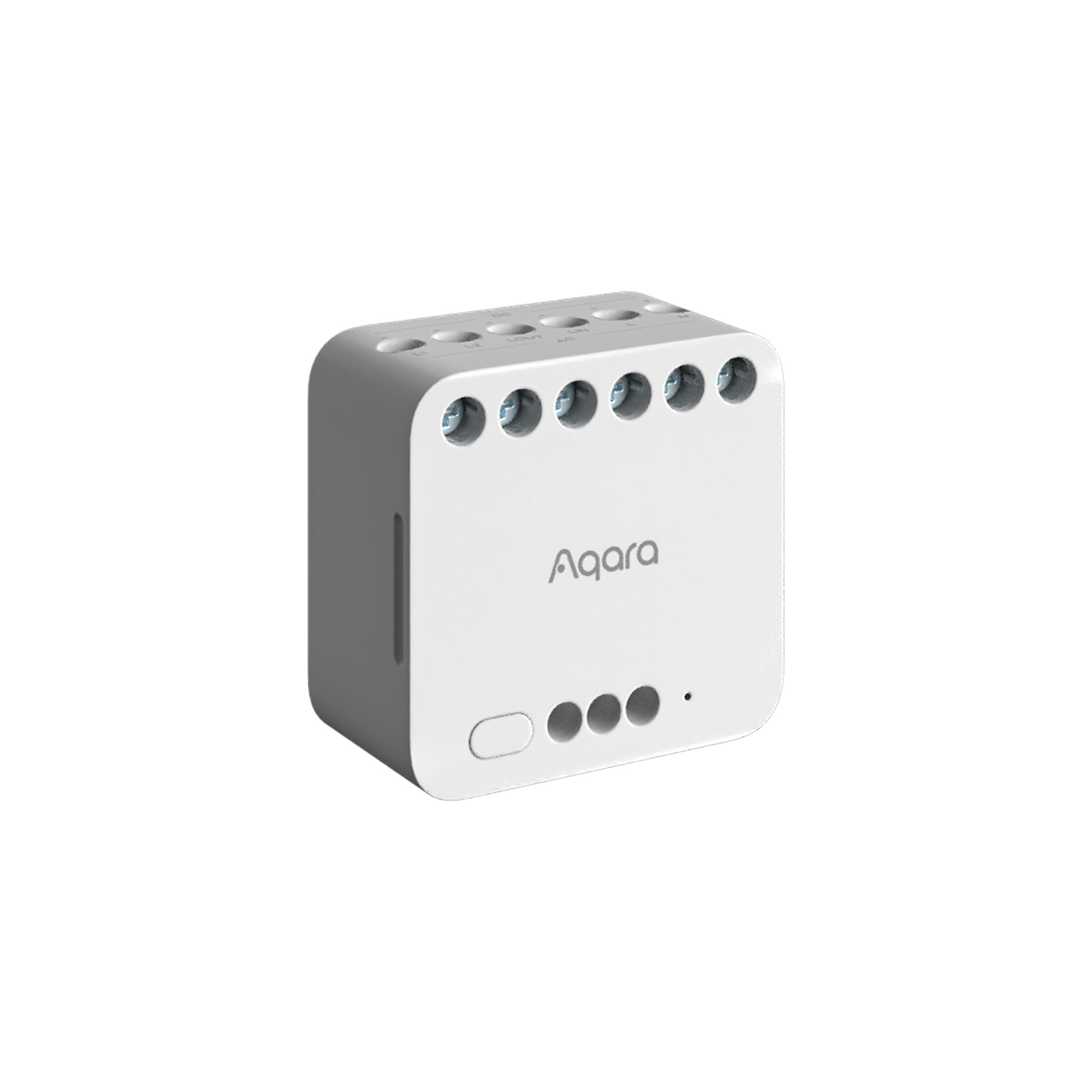

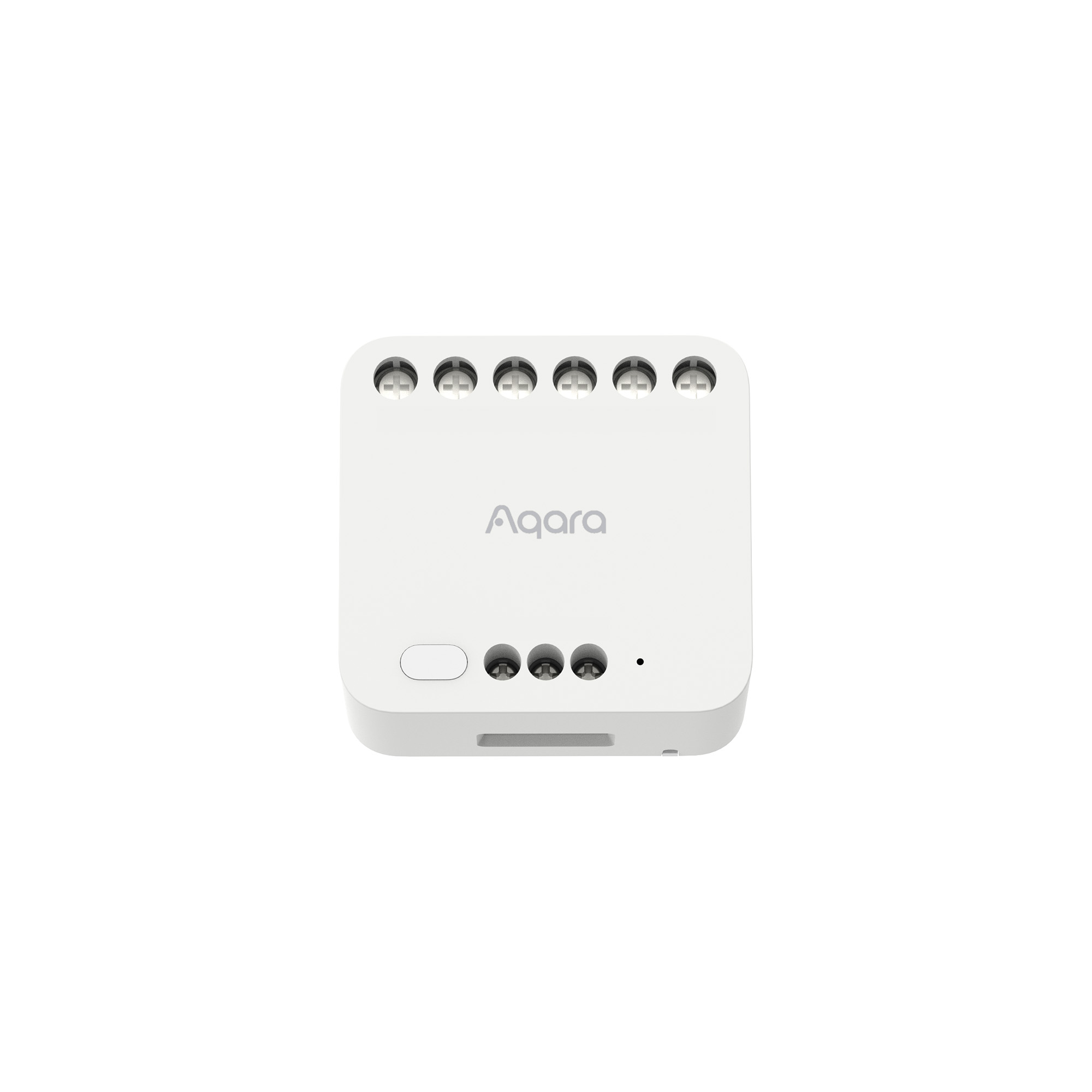

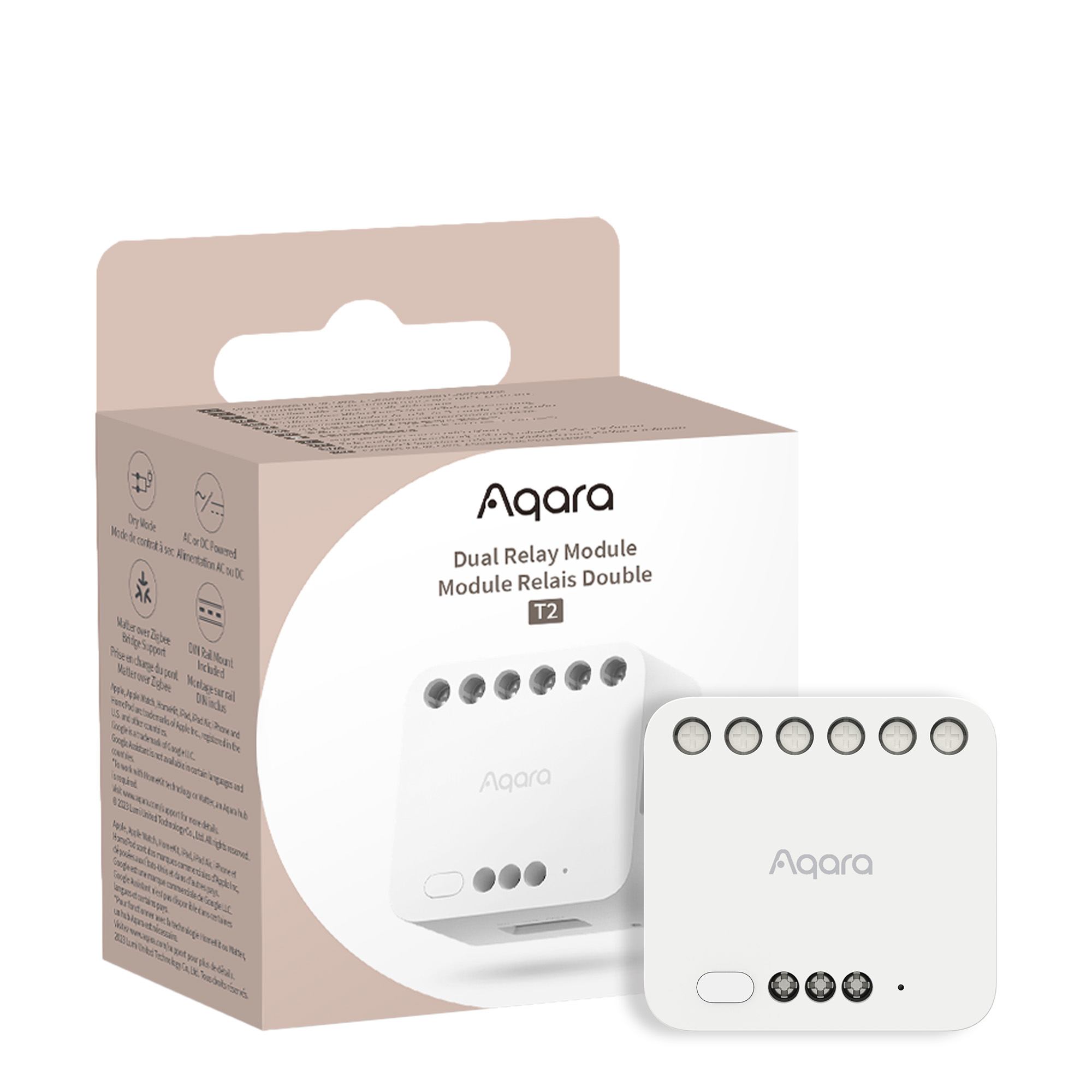

Aqara Dual Relay Module T2

Aqara Dual Relay Module T2

Live smart without replacing your original equipment

The Aqara Dual Relay Module T2 is a device that employs Zigbee technology to regulate power, controlling the on and off functions. It is capable of managing a range of devices including motors, garage doors, lights, switches, and sockets in two modes: dry contact and wet contact. This module can elevate the intelligence and potential of traditional equipment. Linked to the Apple Home platform, the device can be seamlessly operated via the Apple Home app. Additionally, it is broadly compatible with various third-party platforms. With the aid of a hub, features such as app-based remote control, timing control, and power statistics can be implemented.

Aqara Dual Relay Module T2 Features:

• Versatile Solution for Home:The T2 is versatile and can be used in various ways. It can be installed in ceiling lights for smart control or in regular wall switches and sockets for remote access. Additionally, it’s suitable for automating coffee machines, air fresheners, electric heaters, roller blinds, and garage roller doors in homes.
• Apple Home and Matter over Bridge Support*: The T2 is compatible with Apple Home, Matter, Google Home, and Amazon Alexa. It transforms traditional devices into smart ones and seamlessly integrates with multiple third-party systems. This facilitates automated setup and linkage with other compatible products, offering a versatile and user-friendly experience.
• Interlock and Motor Control: Users can connect the Dual Relay Module T2 to bidirectional motors with ease and safety. Now, the T2 can be used to control tubular motors, as a roller shade switch, and even as the core of the system.
• Energy Monitoring and Power Memory: The Dual Relay Module T2 includes a power on/off state memory function, remembering the last state after power failure. Additionally, it offers power metering and statistics features.
• Enhanced Safety and Security: Safety is paramount when dealing with DIY electrical equipment. We prioritise user safety, considering the complexities of installation and use. We allow adjustment of max and min voltage, current, and power values. In cases of abnormal waking states, the power supply is automatically turned off to ensure safety.**
• Wireless Switch Mode: The convert to wireless switch mode is also supported. Thanks to this feature, the existing wall switch will be able to be converted into a scene controller: arm or disarm the security system, control the curtains or lights just using your old wired switch.***
• Easy to Use and Installation: The relay’s DIN rail-mounted design makes it easy to stick it in electrical cabinets and other tight spots. Its compact size makes it even more suitable for other wall boxes, including the 86 mm and US-standard ones.****

*Apple Home, Google, Alexa, and Matter are neither natively supported, they are supported over Zigbee bridge.
**The installation of T2 is intended for users who are familiar with electrical installation. We always advise you to contact a professional electrician and only use these instructions as a reference.
***Please note: the sensor or a switch connected to S1/S2/COM contacts should support the voltage that is supplied to the Relay.
****Please note: the T2 supports the maximum current of 10A. And a wall box with a depth of about 60 mm is recommended. In case the existing wall box is not deep enough, you can try to use a Wireless Remote Switch H1 or a surface-mounted or ultra-thin wall switch to control the Relay.

^Professional installation recommended.

Aqara Dual Relay Module T2 Automation Scenes:

Garage door controller
IF You arrive within 500 metres from your home, THEN Open the garage door

Thanks to the dry-contact mode, the Relay T2 can be used to make your existing garage door smart*. Just wire the garage door opener, and you will be able to use the garage door in automations as well as expose it to third-party systems. And, the Relay will act as a repeater for your Aqara Door and Window sensor so that you won’t need to worry about the weak signal.
*The garage door opener should be able to be controlled using dry contacts.

Devices:  Dual Relay T2 + Hub + Door and Window Sensor

Save energy by using the T2 to control the boilers
IF All the Radiator Thermostats are off, THEN Turn off the boiler

If your boiler can be controlled by dry contacts, you will be able to use the Relay T2 to make it smart. As a result, you will be able to control it remotely, and save energy by linking it with the Radiator Thermostats using Aqara Home or third-party automations.

Devices: Dual Relay T2 + Hub + Radiator Thermostat E1

Install it Behind Wall Switches and Outlets
IF Presence is detected, THEN Turn on a light switch or a heater connected to the outlet
Just install the T2 behind your existing wall switch or outlet, and you will be able to convert it into a smart one. As a result, the existing outlets and switches will be able to participate in automations, and get the power consumption statistic function.

Devices:  Dual Relay T2 + Hub + Presence Sensor FP2
